BattleField Trauma Simulator

■  The anatomical position of the simulated human head and neck is accurate, the head can swing left and right, and the horizontal rotation is 180 degrees, which is convenient for removing foreign bodies in the oral cavity.
■  Training in cricothyroid membrane puncture, pneumothorax decompression, pleural puncture, placement of chest drainage tube, and tibial bone marrow puncture can be performed.

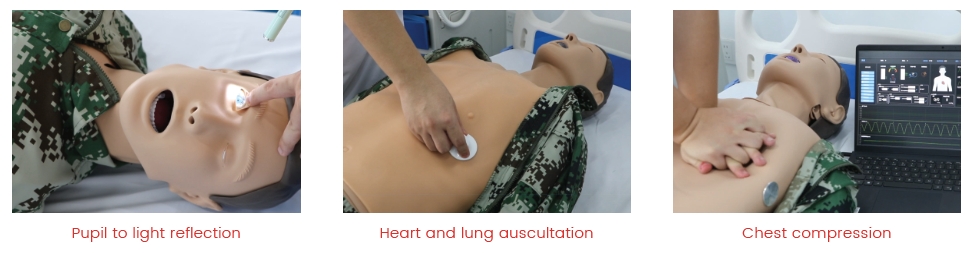

■  The eyeball adopts OLED simulation, with visible colored retina, black pupils, transparent crystals, and the ability to reflect light at any angle;  In a dead state, the pupil dilates and the reflex to light disappears.
■  The carotid artery pulsation can be palpable, and in a state of death, the carotid artery pulsation disappears.
■  There are real mouth, teeth, epiglottis, uvula, and endotracheal intubation can be performed.
■  The right hand can be used for intravenous injection and venous blood collection. If the puncture is correct, there is an obvious sense of failure and blood return.
■  The left hand can measure blood pressure.
■  Can breathe spontaneously, with visible thoracic ups and downs, smelling breath sounds, accompanied by coughing. When dying, the breath sounds disappear and the cough also disappears.

■  There is cyanosis on the lips, left and right fingernail beds, which changes with the physiological state of the simulator.
■  Heart and lung sound auscultation can be performed.
■  If there is trauma to the lower extremity, hemostasis, bandaging can be performed, catheterization enema can be performed, and stoma nursing can be performed.

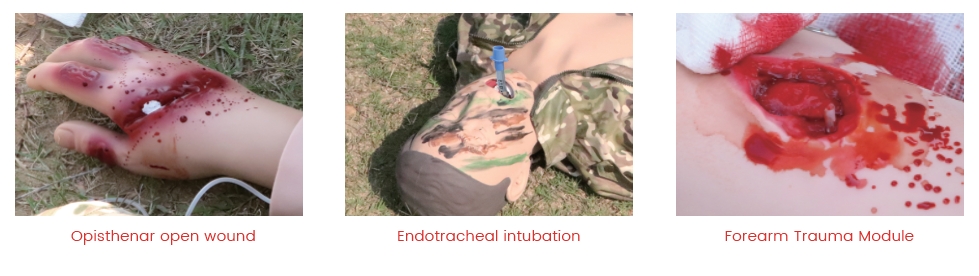

■  Equipped with 43 trauma components, the components include.
■  There are two communication methods between the simulator and the computer: USB communication, wireless WIFI communication.
■  According to the operating standards of the "2020 American Heart Association Guidelines for Cardiopulmonary Resuscitation and Cardiovascular First Aid", the cardiopulmonary resuscitation operation can be evaluated. If the operation meets the standard, the simulated person will be resurrected; if the operation fails to meet the standard, the simulated person will die.
■  CPR operation training, three operation modes, practice, assessment, actual combat mode, each mode can set the training time, CPR cycle times, etc.
* Operational evaluation criteria: In line with AHA operation procedures: judging environmental safety, slapping, calling, judging breathing and carotid arteries, calling for help, opening airway, removing oral foreign bodies, and using AED.
* Operation time limit, number of CPR cycles, tidal volume range, tidal compliance rate; compression depth range, compression compliance rate, and operation evaluation.
■  Record data in real time, and record the pressing and blowing process in the form of a curve, so that the statistical results are more intuitive, and the details of each operation can be recorded. If the pressing interval is too large during the pressing process, the interval time will be recorded on the pressing curve.
■  The transcript can be saved and printed, and the transcript can be printed by connecting to a general printer.
■  Equipped with analog defibrillator.
■  The latest two-way wave defibrillation technology can be used for real defibrillation. The software displays the defibrillation energy value and records it in the transcript.
■  The simulated defibrillator is specially designed for the training of first responders prior to the use of a real defibrillator. The simulator is a high-simulation analog defibrillator, which has the same shape as the real defibrillator, and the operation process is the same as that of the real defibrillator, which is convenient for training emergency personnel for defibrillation training. With manual defibrillation and automatic defibrillation (AED) functions.
